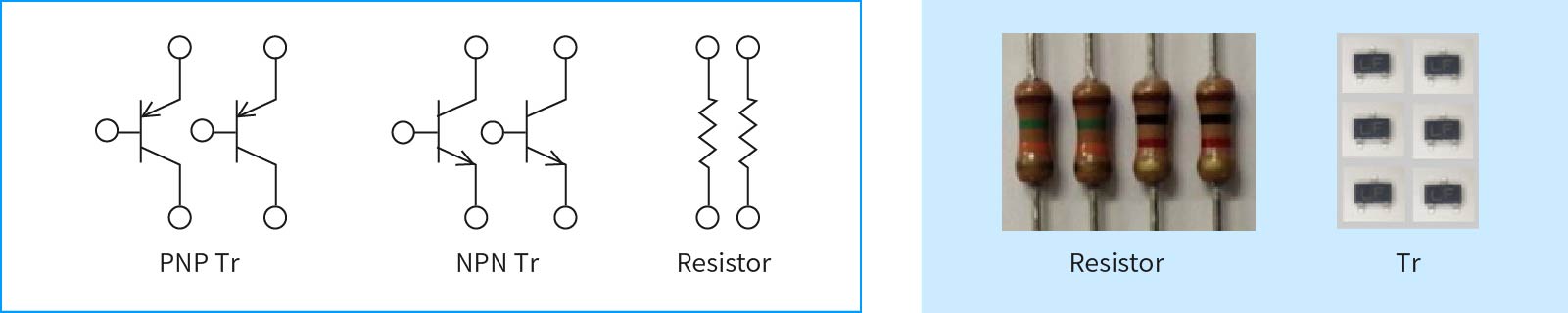

Multi-Function Transistor (MFT) is a custom IC in which the circuit is constructed by combining devices such as transistors, resistors, and capacitors to serve the function. We prepare a core chip (semi-finished product) on which transistors and resistors are set up in advance. Then depending on the customer's circuit, we will install aluminum wiring to complete the chip. After that, we will assemble the product to finish it to meet the customer's specification.

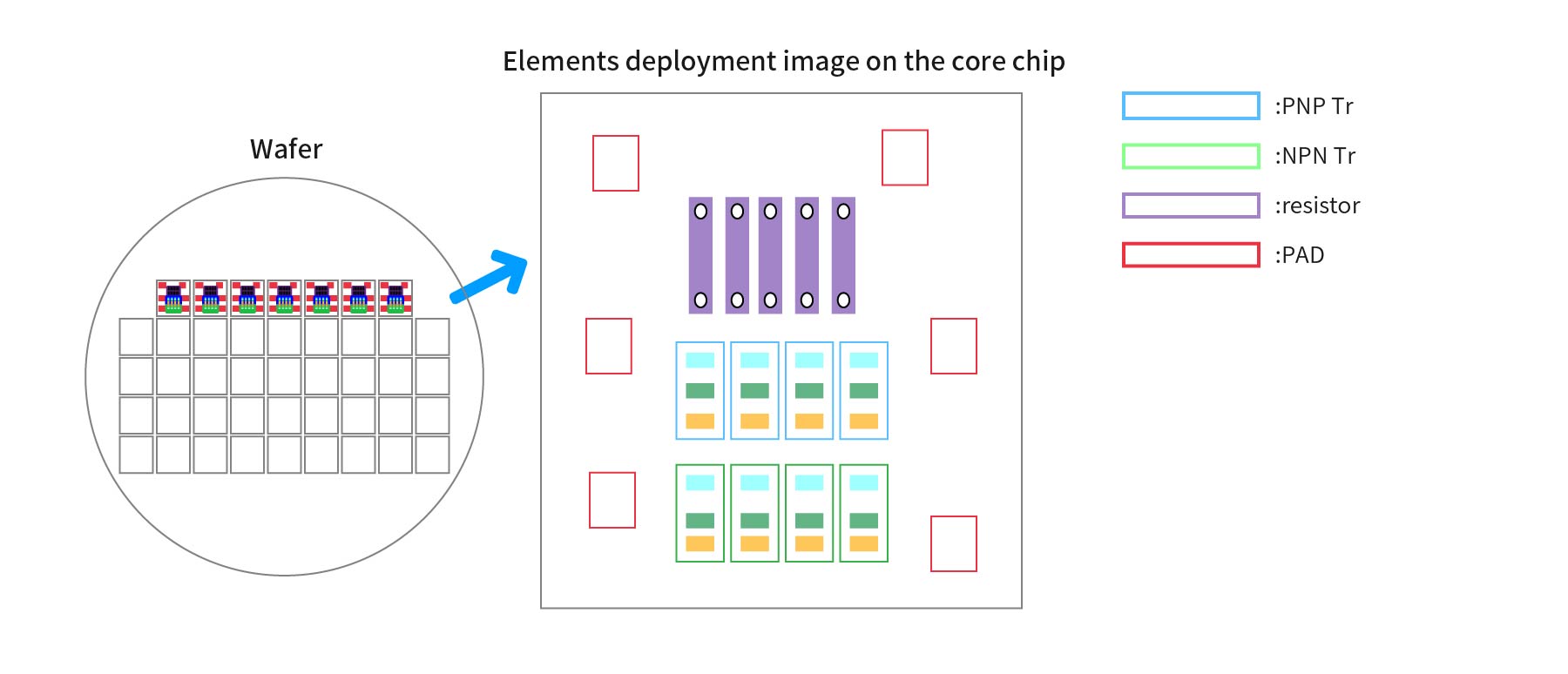

Elements such as transistors or resistors are deployed in advance.
Circuit is wired with aluminum following your specifications.
Products are assembled.
SC-74
TMSOP8
SSOP14
To integrate custom configuration discrete circuits easily.
To support sudden change in specification or bug fixing.
Core chips are common to various customers. That saves development cost.
Core chips are prepared in advance. That leads to short chip production time, so time to delivery an initial sample can be accelerated.
Reduction of the number of parts contributes mounting cost reduction, board area reduction, tact-up of production line, and failure rate decrease as a set.
Power supply voltage (VCCmax): 40V
Allowable dissipation (Pdmax): 200mW
*In some cases, VCCmax may be 40V or lower.
*Devices in MFT can be used within allowable dissipation.
| Type name | Package | Function | Application |
|---|---|---|---|
| RT8H012CPDF | SC74 | Reseting | For resetting power supply |
| RT8H065CPDF | SC74 | Latching | For protecting power supply IC from overcurrent or overvoltage |
| RT8H255CPDF | SC74 | IGBT pre-driver | For pre-drive of IGBT gate |
| RT8H102CPDF | SC74 | IGBT pre-driver Built-in UVLO | For pre-drive of IGBT gate （Built-in UVLO） |
| RT8H034CPDF | SC74 | LED driver | For LED driver, as a mean of energy saving |
| RT8H042CPDF | SC74 | Power supply switching | For switching battery and AC power supply |
| RT8H052CPDF | SC74 | Comparator for three-shunt | For three-shunt controling of motors |
| RT8H064CPDF | SC74 | Earth Leakage Detector | For earth leakage protection |
| RT8H112CPDF | SC74 | IGBT pre-driver Built-in UVLO | For pre-drive of IGBT gate （Built-in UVLO and Power cut-off circuit ） |
| RT8H062EPDF | TMSOP8 | Watchdog timer | For watchdog outside the microcomputers |
| RT8H072EPDF | TMSOP8 | IGBT gate block | For IGBT gate blocking |
| RT8H044KPDF | SOP14 | Earth Leakage Detector | For high-speed type earth leakage breakers |
